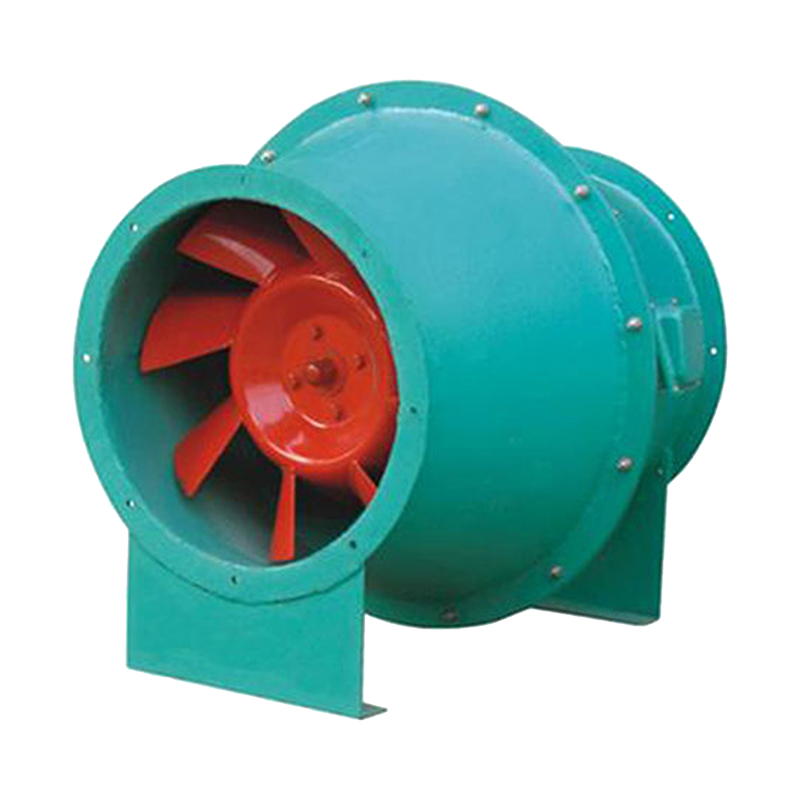

High Velocity Diagonal Flow Fire Smoke Exhaust Fan 280℃ Industrial

SFG type oblique flow fire smoke exhaust fan

Product introduction:
  A diagonal flow fan primarily consists of an impeller, casing, inlet collector, outlet guide vane, and motor. Also known as a mixed flow fan, a diagonal flow fan is a cross between axial and centrifugal fans. The impeller of a diagonal flow fan imparts both centrifugal and axial motion to the air, creating a blend of axial and centrifugal motion within the casing.

Structural features:
1. Drum-shaped structure, using the meridian acceleration method and "quasi-ternary" flow theory to design the mixed flow fan adopts a conical wheel structure. Its small inlet and outlet characteristics accelerate the flow rate of the airflow and have a high pressure coefficient. The wind pressure coefficient is higher than that of the axial flow fan, and the flow coefficient is larger than that of the centrifugal fan.

2. 45° inclined impeller design, twisted wing-shaped blades, collector or arc silencer added to the air inlet, the air volume can reach 25000m³/h, and the wind pressure exceeds 1000Pa. Compared with traditional fans, it saves 30% energy and reduces noise by 15 decibels.

3. Thick bracket, sturdy and durable, not easy to deform, reduces the vibration generated by the motor during operation, allows the fan to continue to be stable and reduce noise.

4. High temperature-resistant copper motor, the conveying gas temperature is between -20℃ and 80℃, 100mg/m³.

Scope of application:
It is widely used in ventilation and air-conditioning projects of civil buildings such as industrial and mining enterprises, hotels, gymnasiums, and ventilation and air exchange in other industrial fields. Replace low-pressure fans, save investment and proportion, simplify design and facilitate installation.

Product parameters and size table:

SFG type diagonal flow fire fan performance technical parameters Model (NO) Power (KW) Speed (r/min) Flow (m/h) Pressure (Pa) 3.0F 0.25 1450 890-2670 184~129 3.5S 0.18 960 935-2807 110~77 3.5F 0.37 1450 1413~4239 250~175 4.0S 0.25 960 1397~4190 143~100 4.0F 0.75 450 2109-6328 328-229 4.5S 0.37 960 1989~5008 182-135 4.5F 1.1 1450 3003-6007 415~317 5.0S 0.75 960 2727-8183 225~157 5.0F 2.2 1450 4120-12360 513~357 6.0S 1.5 960 4713-11784 321~240 6.0F 5.5 1450 7119-21358 739-515 7.0S 3 960 7484-18713 440~328 3.0S 7.5 960 11171-22348 575~440

SFG type diagonal flow fire fan appearance and installation dimension diagram
Model (NO)	φD1	ΦD2	φD3	φD	L1	L2	L3	L4	H	4-0 d1	n- d2
3	300	340	380	500	450	386	250	200	260	4-φ10.5	6-Φ10
3.5	350	400	440	580	520	442	280	230	300	4-φ10.5	8-φ10
4	400	440	480	650	600	506	350	300	340	4-φ12.5	8-φ12
4.5	450	490	530	720	670	580	350	300	370	4-φ12.5	8-φ12
5	500	550	600	800	750	650	500	420	410	4-φ12.5	12-φ12
6	600	650	700	950	900	800	600	520	490	4-φ16.5	12-φ12
7	700	750	800	1100	1100	940	700	620	560	4-Φ16.5	16-φ12
8	800	850	900	1230	1200	1090	800	720	640	4-φ16.5	16-φ12

Packing and Shipping:
Product Packaging:

  This Smoke Extract Fans product is carefully packaged to ensure its safe delivery to you. Each fan is securely wrapped in protective material and placed in a sturdy cardboard box to prevent any damage during shipping.

Shipping:

  We offer fast and reliable shipping for all orders of our Smoke Extract Fans. Once your order is confirmed, our team will process it quickly and have it shipped out to you in a timely manner. You will receive a tracking number so you can monitor the delivery status of your package.

FAQ:

Q: Do you have other types of fans?
A: We have a full range of fans for fire protection products, including but not limited to axial flow, diagonal flow and centrifugal fans.

Q: Can you design a complete ventilation system for my factory?
A: Yes, you provide the size and area of the factory, and we will have professional designers to provide you with excellent advice.

Q: Can you do OEM and build our own brand?
A: Yes, we can provide OEM and ODM services, and you can also build your own brand on the product.

Q: Can you produce fans with specific appearance, blades, and spray paint?
A: Yes, we are both a manufacturer and a trading company. We have our own factory and welcome your consultation.
